Kaskade::SDCGridImplementationBase Class Referenceabstract

A convenience class simplifying the implementation of different SDCTimeGrid derived classes. More...

#include <sdc.hh>

Detailed Description

A convenience class simplifying the implementation of different SDCTimeGrid derived classes.

It stores the collocation points as well as integration and differentiation matrices, and provides access to them by implementing the pure virtual methods of the base class.

Definition at line 169 of file sdc.hh.

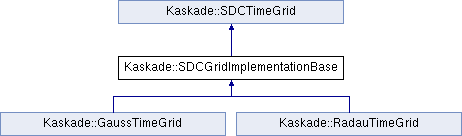

Inheritance diagram for Kaskade::SDCGridImplementationBase:
Kaskade::SDCTimeGrid Kaskade::GaussTimeGrid Kaskade::RadauTimeGrid

Public Types

typedef Dune::DynamicVector< double > RealVector
 The type used for real vectors. More...

typedef DynamicMatrix< double > RealMatrix
 The type used for real (dense) matrices. More...


Public Member Functions

virtual RealVector const & points () const
 Time points in the time step. More...

virtual RealMatrix const & integrationMatrix () const
 Integration matrix \( S \). More...

virtual RealMatrix const & differentiationMatrix () const
 Differentiation matrix \( D \). More...

double point (int k) const
 Time points in the time step. More...

virtual void refine (RealMatrix &p)=0
 Perform refinement of the grid, filling the prolongation matrix. More...

virtual RealMatrix interpolate (RealVector const &x) const =0
 Compute interpolation coefficients. More...


Protected Attributes

RealVector pts

RealMatrix integ

RealMatrix diff


Member Typedef Documentation

◆ RealMatrix

The type used for real (dense) matrices.

Definition at line 78 of file sdc.hh.

◆ RealVector

typedef Dune::DynamicVector<double> Kaskade::SDCTimeGrid::RealVector
inherited

The type used for real vectors.

Definition at line 73 of file sdc.hh.

Member Function Documentation

◆ differentiationMatrix()

virtual RealMatrix const & Kaskade::SDCGridImplementationBase::differentiationMatrix ( ) const
inlinevirtual

Differentiation matrix \( D \).

This computes a matrix such that polynomials given by values at \( t_0, \dots,t_n\) can easily be differentiated.

The Lagrangian interpolation functions \( L_k \) are defined by \( L_k(t_i) = \delta_{ik} , \quad i=0,\dots,n\). The matrix \( D \in \mathbb{R}^{n+1\times n+1}\) contains the values

\[ D_{ik} = \dot L_k(t_i) \]

This way, if \( u \) is defined in terms of its function values \( v_i = u(t_i) \), its derivatives can be evaluated by a matrix-vector multiplication:

\[ \dot u(\tau_i) = (Dv)_i \]

Implements Kaskade::SDCTimeGrid.

Definition at line 183 of file sdc.hh.

◆ integrationMatrix()

virtual RealMatrix const & Kaskade::SDCGridImplementationBase::integrationMatrix ( ) const
inlinevirtual

Integration matrix \( S \).

This computes a matrix such that functions given by values at \( t_0,\dots,t_n\) can be easily integrated.

Interpolation is based on the nodes \(t_0\dots,t_n\). Depending on the actual implementation, the initial point \( t_0 \) might be ignored (i.e. have a quadrature weight of 0).

The Lagrangian interpolation functions \( L_k \) are defined by \( L_k(t_i) = \delta_{ik},\quad i=1,\dots,n \). The matrix \( S \in \mathbb{R}^{n\times n+1}\) contains the values

\[ S_{ik} = \int_{\tau=t_i}^{t_{i+1}} L_k(\tau) \, d\tau \]

(the leading column being zero). This way, if \( u \) is defined in terms of its function values \( v_i = u(t_i),\quad i=1,\dots,n \), the integrals can be evaluated by a matrix-vector multiplication:

\[ \int_{\tau=t_i}^{t_{i+1}} u(\tau) \, d\tau = (Sv)_i \]

Implements Kaskade::SDCTimeGrid.

Definition at line 178 of file sdc.hh.

◆ interpolate()

virtual RealMatrix Kaskade::SDCTimeGrid::interpolate ( RealVector const &  x) const
pure virtualinherited

Compute interpolation coefficients.

Returns a matrix \( w \in \mathbb{R}^{m+1\times n+1} \), such that the interpolation polynomial \( p \) to the values \( y_i \) at grid points \( t_i \) can be evaluated as

\[ p(x_i) = \sum_{j=0}^n w_{ij} y_j, \quad i=0,\dots,m. \]

Implemented in Kaskade::LobattoTimeGrid, Kaskade::RadauTimeGrid, and Kaskade::GaussTimeGrid.

◆ point()

double Kaskade::SDCTimeGrid::point ( int  k) const
inlineinherited

Time points in the time step.

This is a convenice function.

Definition at line 94 of file sdc.hh.

◆ points()

virtual RealVector const & Kaskade::SDCGridImplementationBase::points ( ) const
inlinevirtual

Time points in the time step.

The time step \( [t_0, t_n] \) contains \( n+1 \) time points \( t_i \), including the end points. Those are provided here. The time points are stored in increasing order.

Implements Kaskade::SDCTimeGrid.

Definition at line 173 of file sdc.hh.

◆ refine()

virtual void Kaskade::SDCTimeGrid::refine ( RealMatrix p)
pure virtualinherited

Perform refinement of the grid, filling the prolongation matrix.

If the function representation is not sufficiently accurate, a finer grid of time points can be tried. This method refines the grid to \( m+1 \) time points \( s_i \), \( m>n \), and fills a prolongation matrix \( P\in \mathbb{R}^{m+1\times n+1} \) such that with \( v_i = u(t_i) \) and \( w=Pv \) it holds that \( w_i = u(s_i) \).

Different derived classes may implement this in different ways, or provide their own, more flexible ways of refining the grid.

Parameters
[out]pthe prolongation matrix

Implemented in Kaskade::LobattoTimeGrid, Kaskade::RadauTimeGrid, and Kaskade::GaussTimeGrid.

Member Data Documentation

◆ diff

RealMatrix Kaskade::SDCGridImplementationBase::diff
protected

Definition at line 192 of file sdc.hh.

Referenced by differentiationMatrix().

◆ integ

RealMatrix Kaskade::SDCGridImplementationBase::integ
protected

Definition at line 191 of file sdc.hh.

Referenced by integrationMatrix().

◆ pts

RealVector Kaskade::SDCGridImplementationBase::pts
protected

Definition at line 190 of file sdc.hh.

Referenced by points().


The documentation for this class was generated from the following file:
